Huge Robust Frame Pcb Router Machine With Large CNC Programe Control

Name: Huge Robust Frame Pcb Router Machine With Large CNC Programe Control
Brand: SMTfly
Price: 1 USD

Cheap Huge Robust Frame Pcb Router Machine With Large CNC Programe Control for sale

Place of Origin : Dongguang China

Brand Name : SMTfly

Certification : CE ISO9001

Model Number : CW-F01

MOQ : 1 set

Packaging Details : each set be packed in plywood case

Delivery Time : 1-3 days after payment confirm

Payment Terms : TT in advance

Supply Ability : 300 set/month

Price : USD/1Set

Guarantee : 1 year

Power(W) : 400

Axis precision : 0.001mm

Precision of cutting : 0.01mm

Contact Now

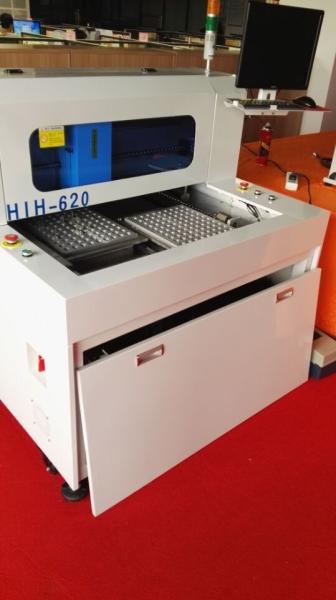

Huge Robust Frame Pcb Router Machine With Large Cnc Programe Control CW-F01

CW-F01 profile:

CW-F01 automatic visual cutting machine is the latest designed high-tech product of a new generation, with (Machine Vision)automatic visual identification and correction function, applied by high-accuracy Panasonic servo drive system to realize quick and precise positioning, rendering accuracy at 0.001mm maximum to ensure the high quality of the cutting and high productivity.

Huge Robust Frame Pcb Router Machine With Large CNC Programe Control

Software:

Control system	Windows XP Professional (Service3,v.3244)
Operation GUI	Chinese Windows XP
Program edit	Inline
Vision system	CCD AOTU offset
Control system	F 1.0.2 version

Hardware:

CCD	Sony 520 line industrial cameras
LENS	Computar EX2C
Screw	TBI Precision ground ball screw imports
Guide	HIWIN widening Imported linear guide rail
MOTOR	JiaBao LCF Series
I/O CONTRONL CARD	HFC PCI-9074
DRIVER CONTRONL CARD	HFC PCI-9074
I/O CARD	PCI-9074-64pcs/-38pcs
Static cleanup	STATIC-ST401A Series
Computer	RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G
Machine interface	AOC LCD17",Logitech mouse

Performance Parameters

Overall
Dimensions(WDH)	1220mm1450mm1420mm
Weight	550KG
Height offset	60~110mm
Manipulator
Motor type	JiaBao series
Positioning repeatability	0.001mm
Axis working area(max)	680mm360mm50mm
Work station
Work station	standard,specialization
PCB loading/unloading	manual
PCB size (max)	322mm*322mm
PCB thick (max)	5mm
Fixturing
Rigidity fixturing	standard
Fixturing fixation	machinery
Spindle Motor
Power	400W
Spindle	50000rpm/min
Protect	self/wind cooling
Change cutter	Specialization
Routing capability
Cutting speed(max.)	100mm/s
Driving speed(max.)	3000mm/s
Precision of cutting	0.01mm
Vacuum System
Vacuum power	2.2KW AC 380V
Vacuum plumb
Utilities
Power	2.2KW AC380V

Air supply	2~5KG/cm2
